All Electric Injection Moulding Machine

BOLE FE SERIES

With all the strengths of the EKII, the FE Series was created as the ALL-Electric version of an already established injection moulding machine.

Engineered with the innovative CCS (Centre Clamping Structure) that eliminates platen deformation, the FE all-electric injection moulding machine was granted 3 patents, each providing advantages over traditional toggle designs. Forward-thinking and dedication to R&D are the fundamental principles that have helped BOLE to revolutionise the injection moulding machine industry.

fe series all electric injection moulding machine

Key Features

 Advantages of FE All-Electric Injection Moulding Machine

  • Energy Saving – As there is no requirement for a hydraulic system and its associated water-cooled heat exchanger, this further reduces the required power consumption.
  • Productive – Synchronous machine movement (overlap) helps achieve a shorter cycle time.
  • Precise – down to 0.01mm incremental position control accuracy ensures product quality.
  • Clean – No hydraulic oil for clamp movement or need to lubricate the moving platen helps keep a clean production environment.
  • Quiet – Low noise levels create a more comfortable working environment.

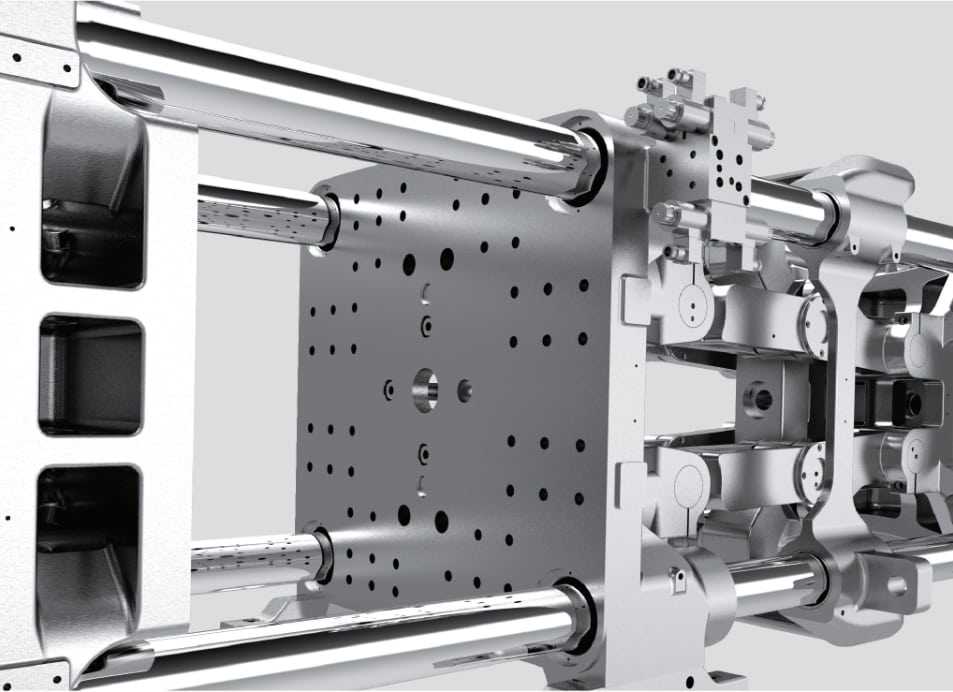

E-Version of CCS Design

The FE Series utilises an E-version of the Centre Clamping Structure (CCS), which functions using the latest servo motor technology and a ball screw mechanism. In conjunction with the linear guided platen, this allows for continuous high-speed precision throughout the machines lifetime.

A lubrication-free moving platen system provides the clean production environment that is demanded by certain industries.

Patented Encapsulated Ball Screw Structure

The encapsulated ball screw design reduces the requirement of a clean working environment, as it offers protection against dust ingression, which could lead to premature screw wear.

The lubrication bath also removes frictional heat generated during normal operation. This increases the lifetime of the ball screw and reduces long term maintenance costs.

Plasticising System

The design of our plasticising units is of German origin, providing efficiency levels that are more than 20% above those of typical domestic design.

For more information on our range of All Electric Injection Moulding Machines, contact us on 0121 725 4422 or email us

Build configuration for UK
Standard FE All Electric machines

SERIES

MAIN PARTS

BRAND

MANUFACTURED COUNTRY

1

Computer

KEBA

AUSTRIA

2

Servo Motor

PHASE

ITALY

3

Servo Driver

PHASE

ITALY

4

Pressure Sensor

NMB

JAPAN

5

Ball Screw

LAIEN

CHINA

6

Contactor

SCHNEIDER

GERMANY

7

Breaker

SCHNEIDER

GERMANY

8

SSR

SCHNEIDER

GERMANY

9

Safety Relay

PILZ

GERMANY

10

Traveling Switch

PILZ

GERMANY

11

Promixity Switch (Square)

PILZ

GERMANY

12

Promixity Switch (Rounded)

PILZ

GERMANY

13

Plasticizing Motor

PHASE

ITALY

14

Mould-Adjusting Motor

PHASE

ITALY

15

Plasticizing Bearing

NSK

JAPAN

16

Sealing Ring

HALLITE/NOK

UK/JAPAN

17

Direction Valve

TOKYO KEIKI

JAPAN

18

Lubrication Pump

RUNZHOU

CHINA

19

High Pressure Pipe

MANULI/ALFA GOMMA

ITALY

20

Pressure Gauge

TECSIS

GERMANY

**BOLE RESERVES THE RIGHT TO CHANGE ANY OF THE SUPPLIERS LISTED ABOVE WITHOUT NOTICE.
